Magnets for special applications

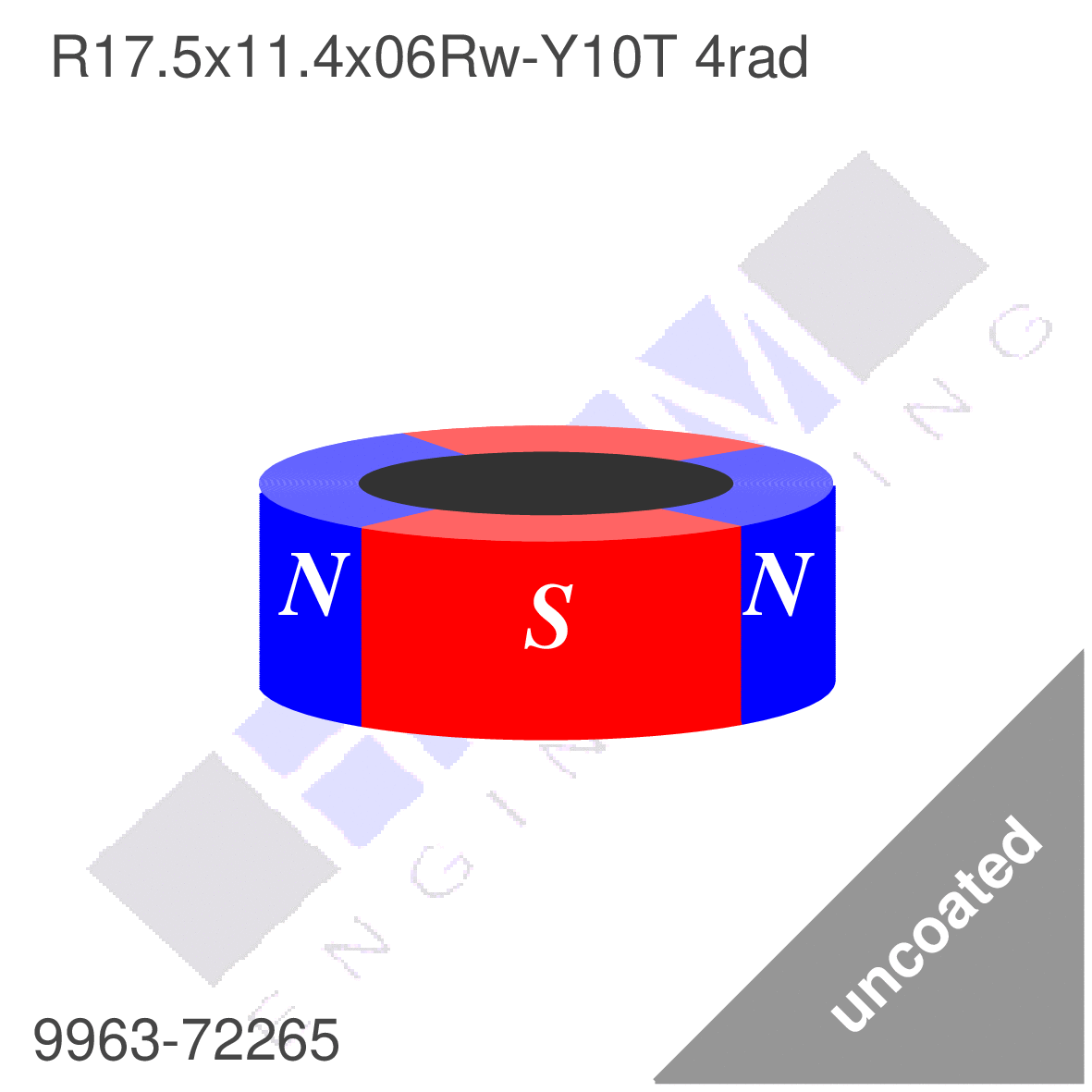

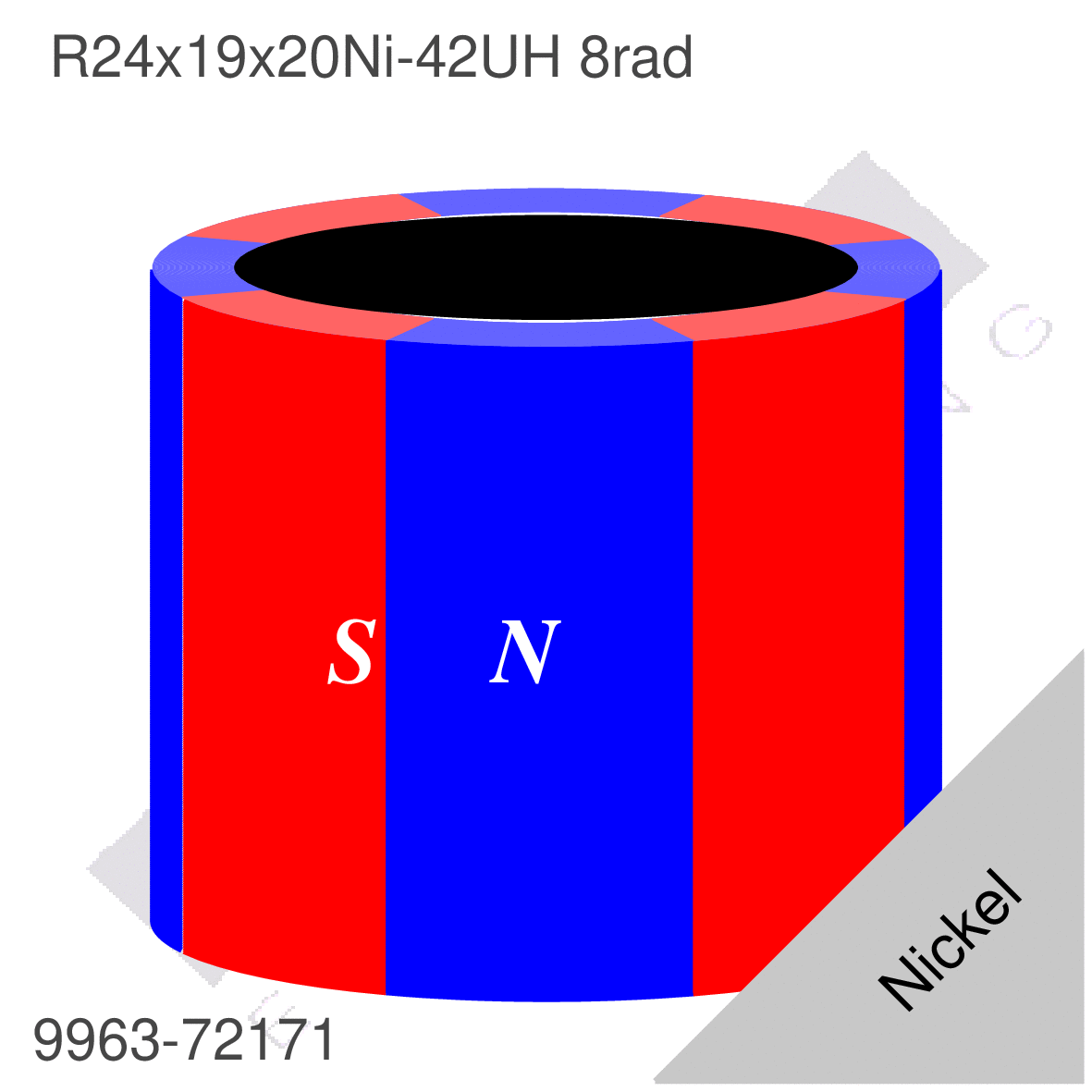

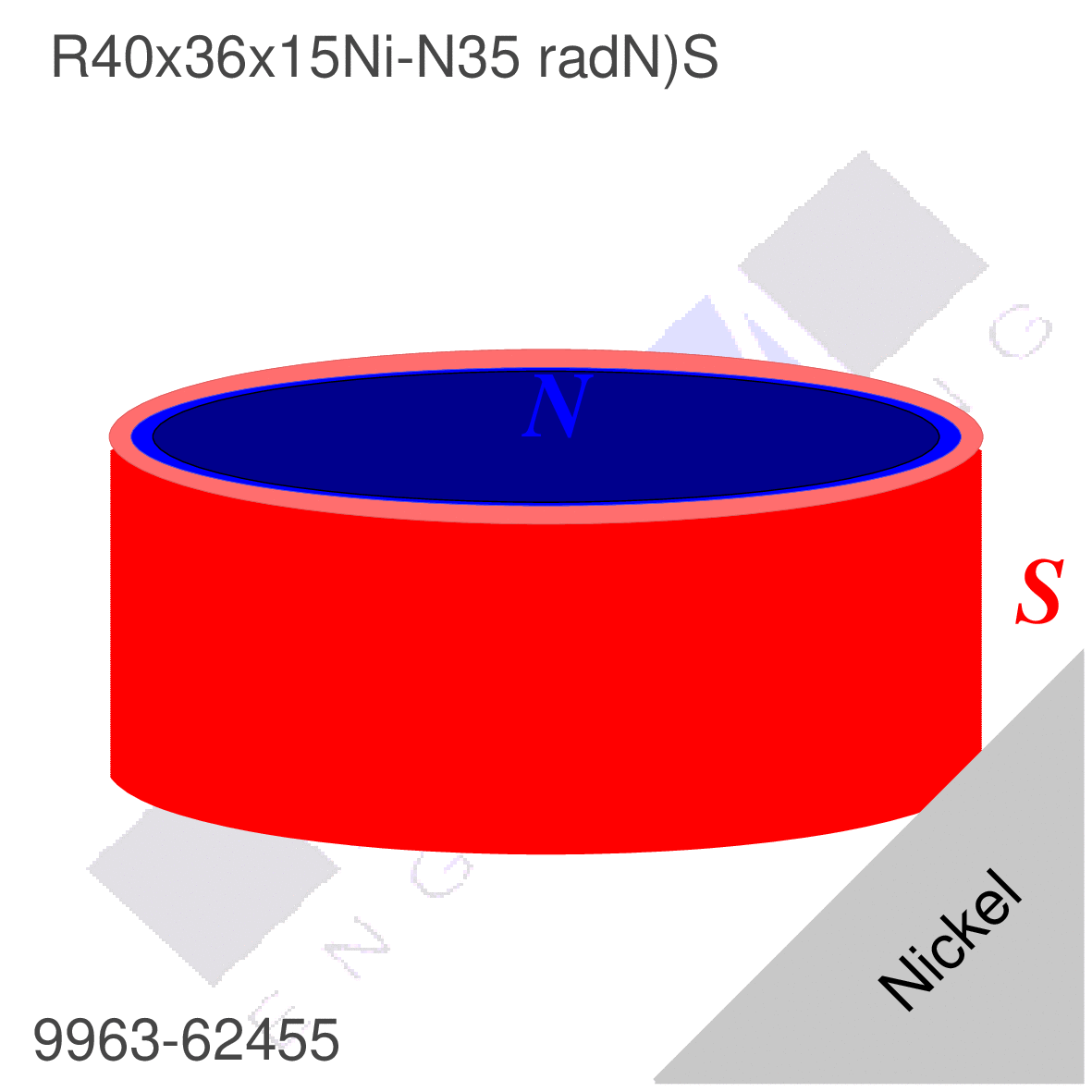

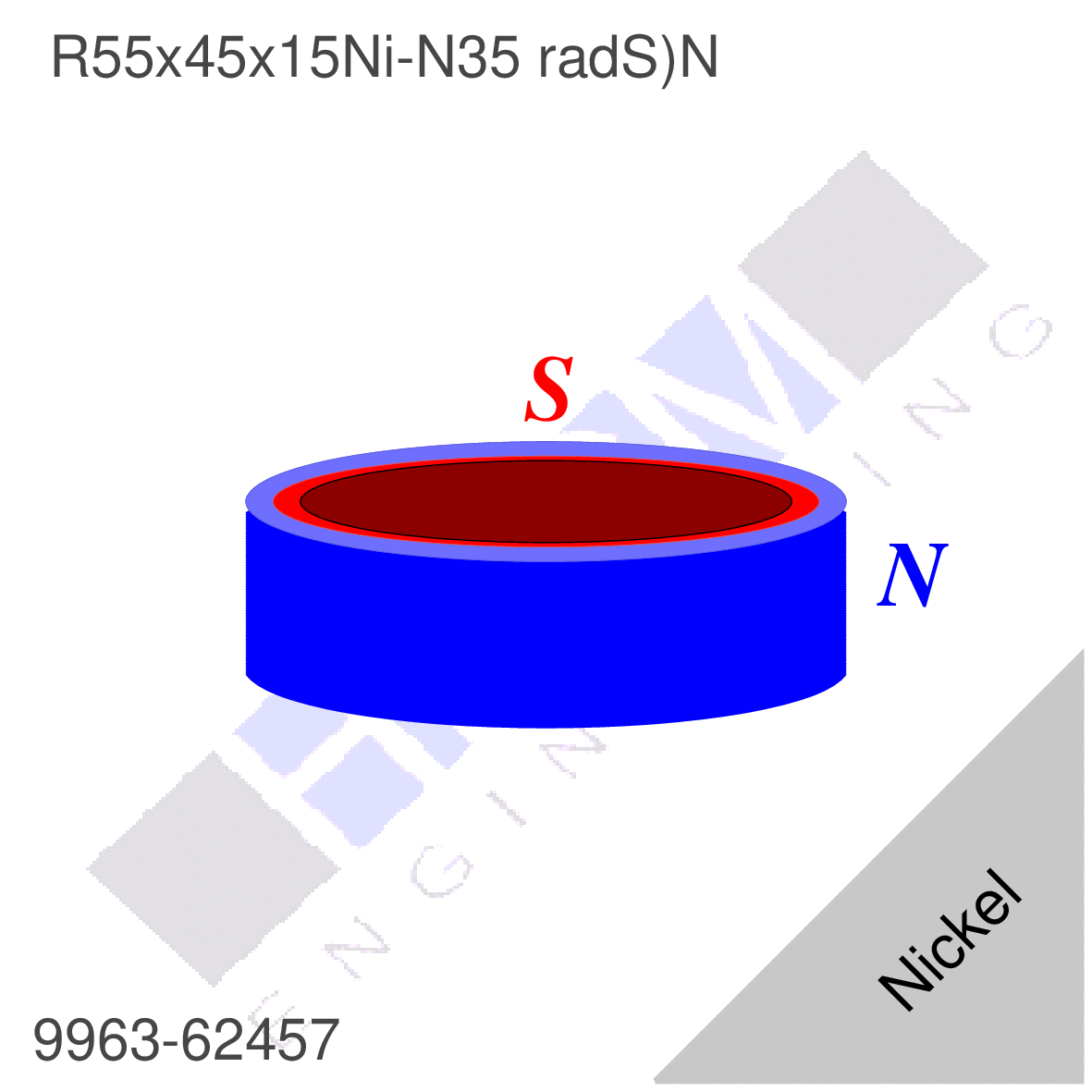

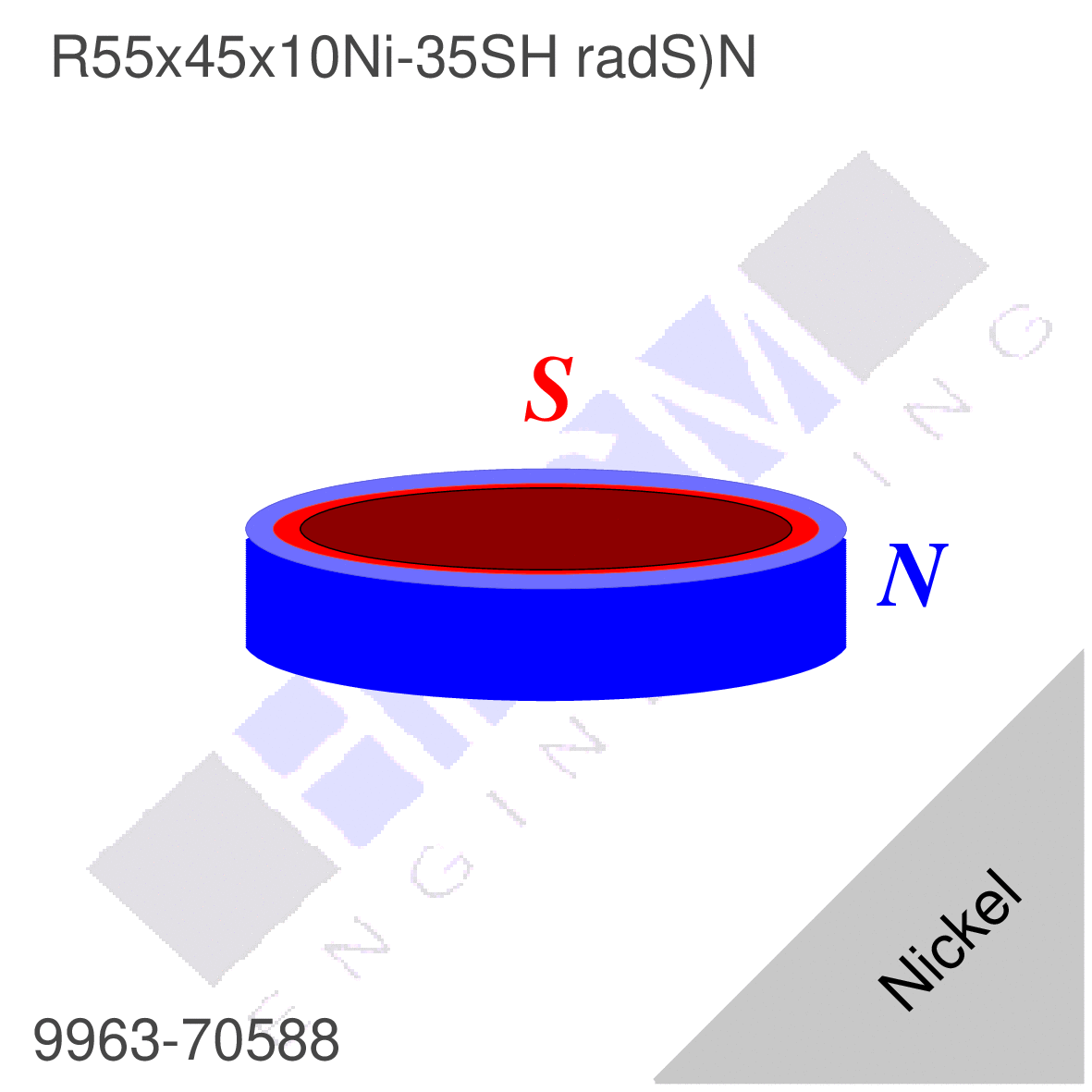

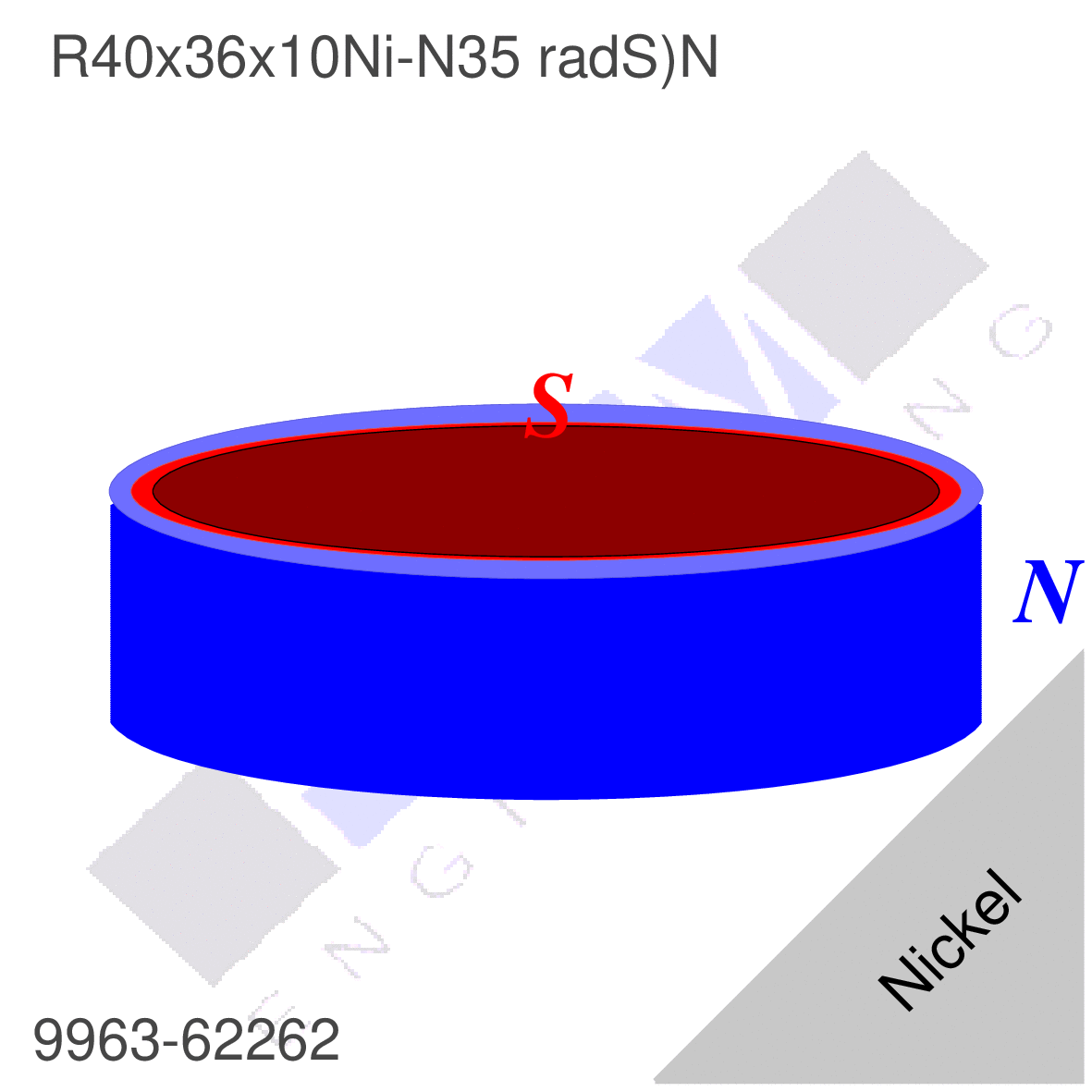

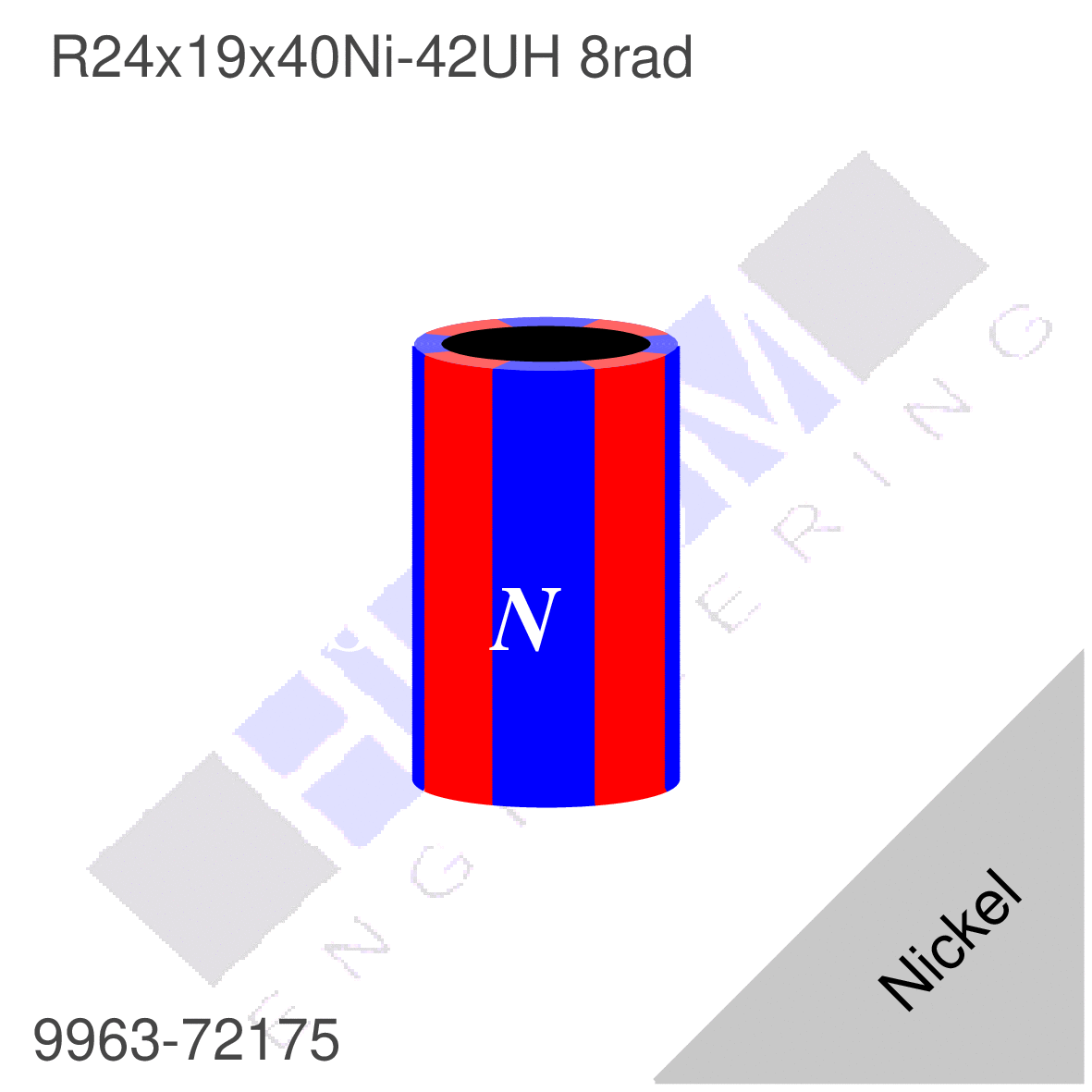

Multi radially poled rings for rotors
e.g. for BLDC - and stepper motors

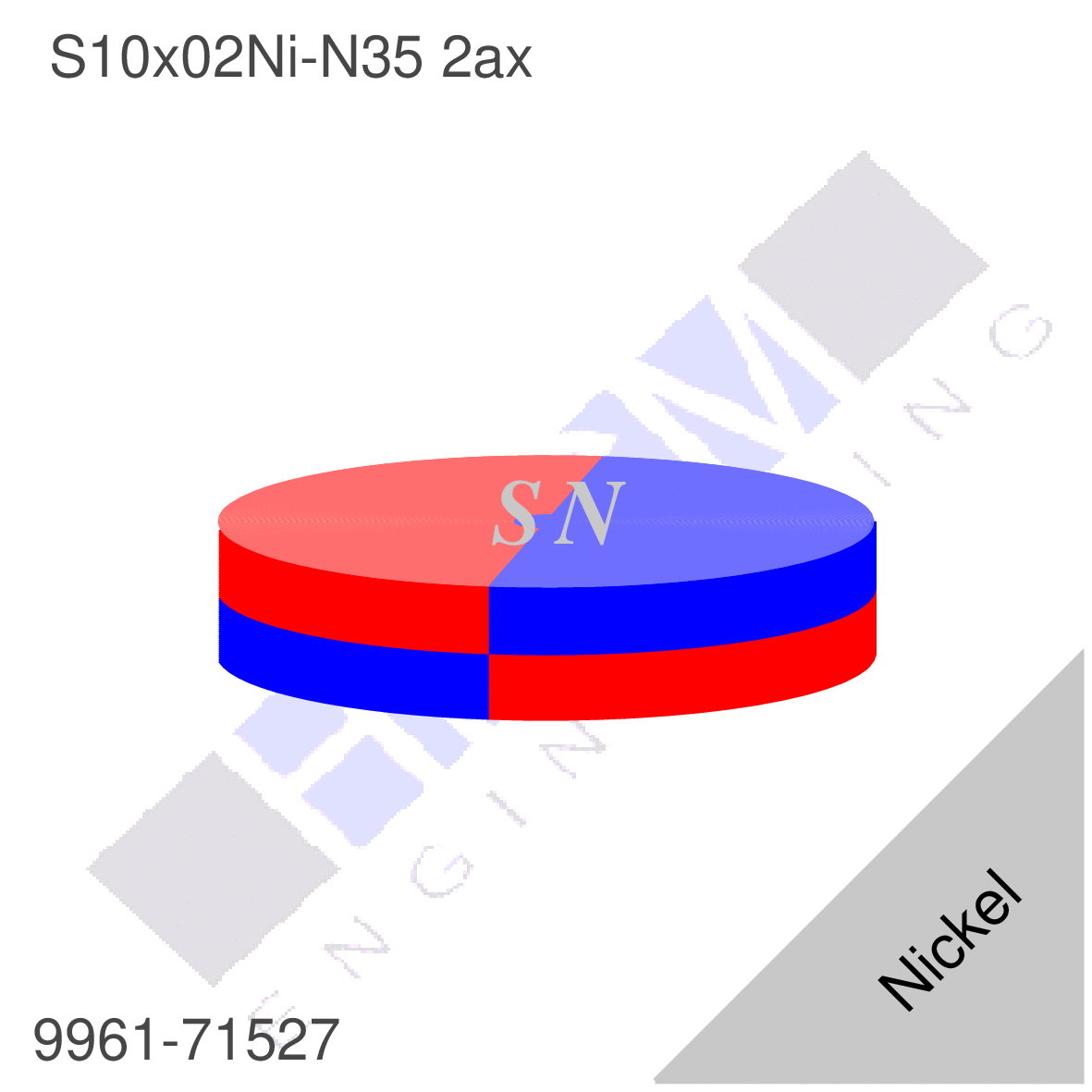

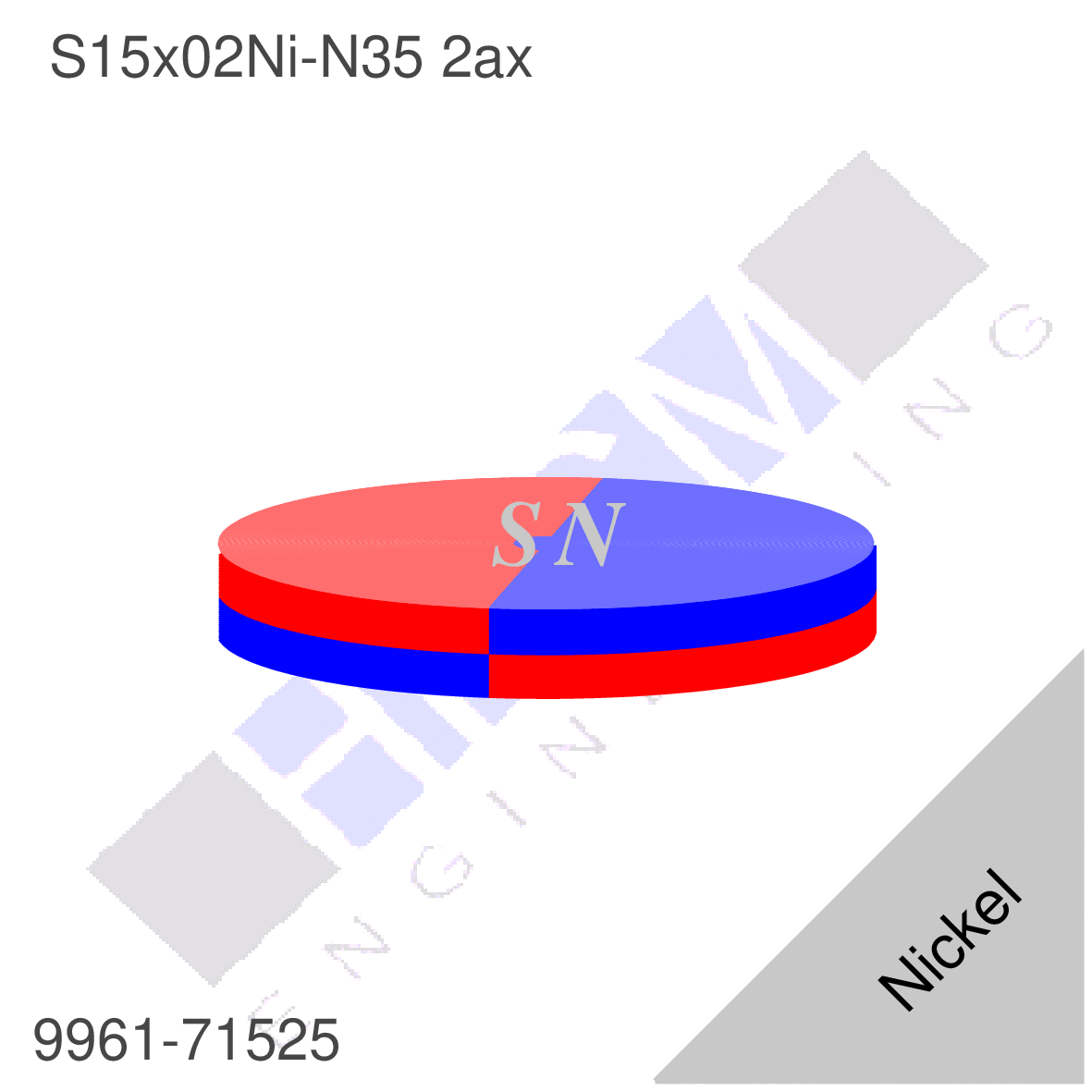

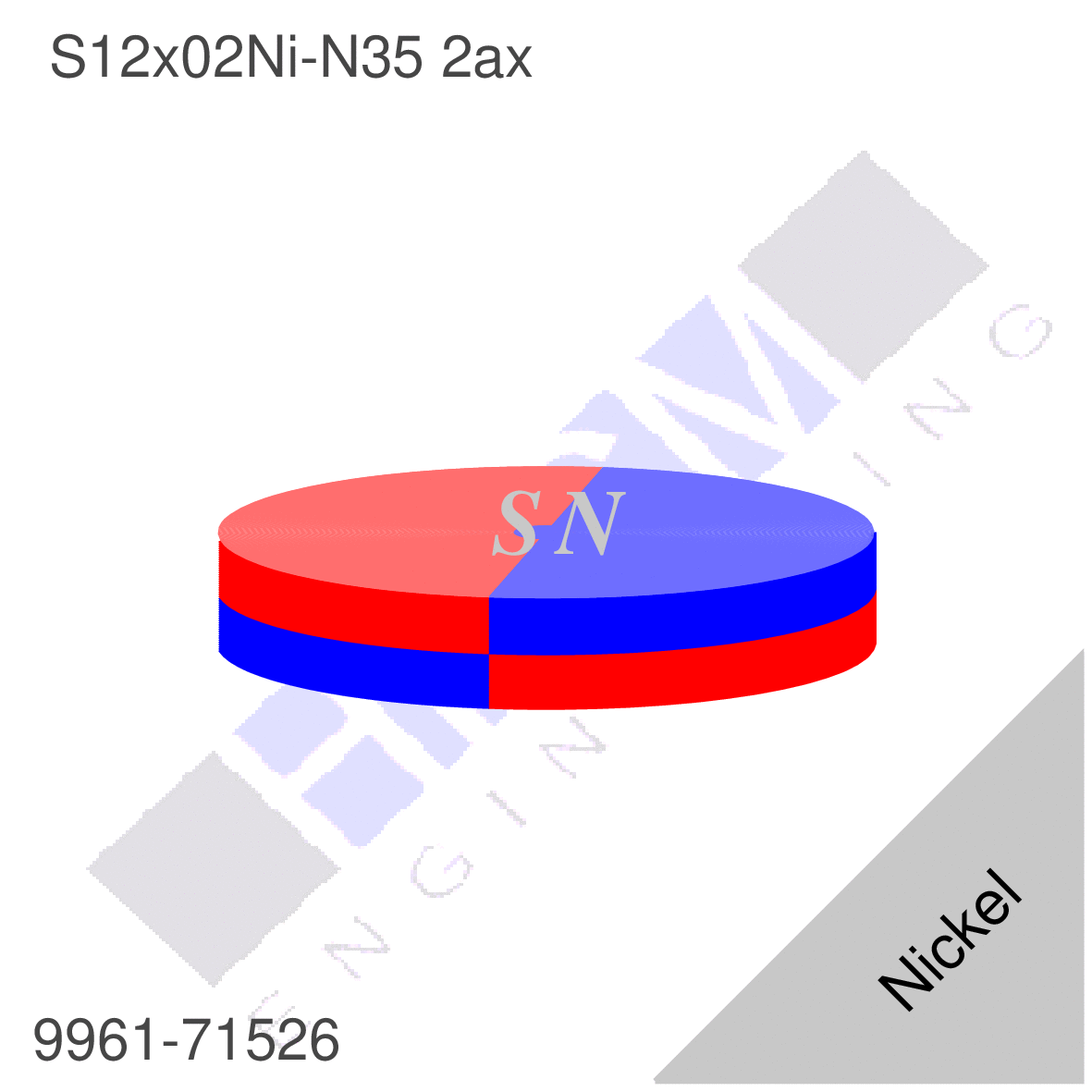

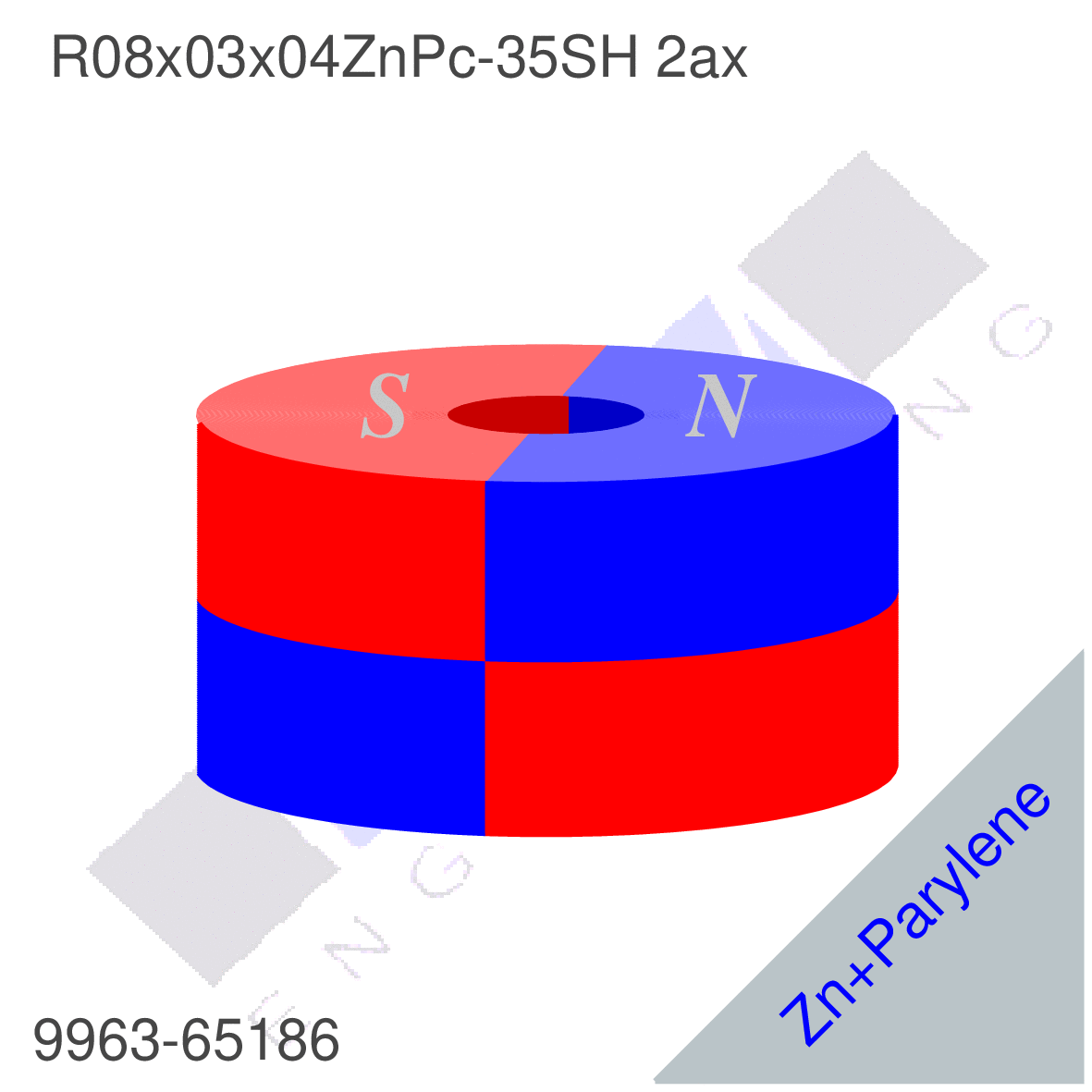

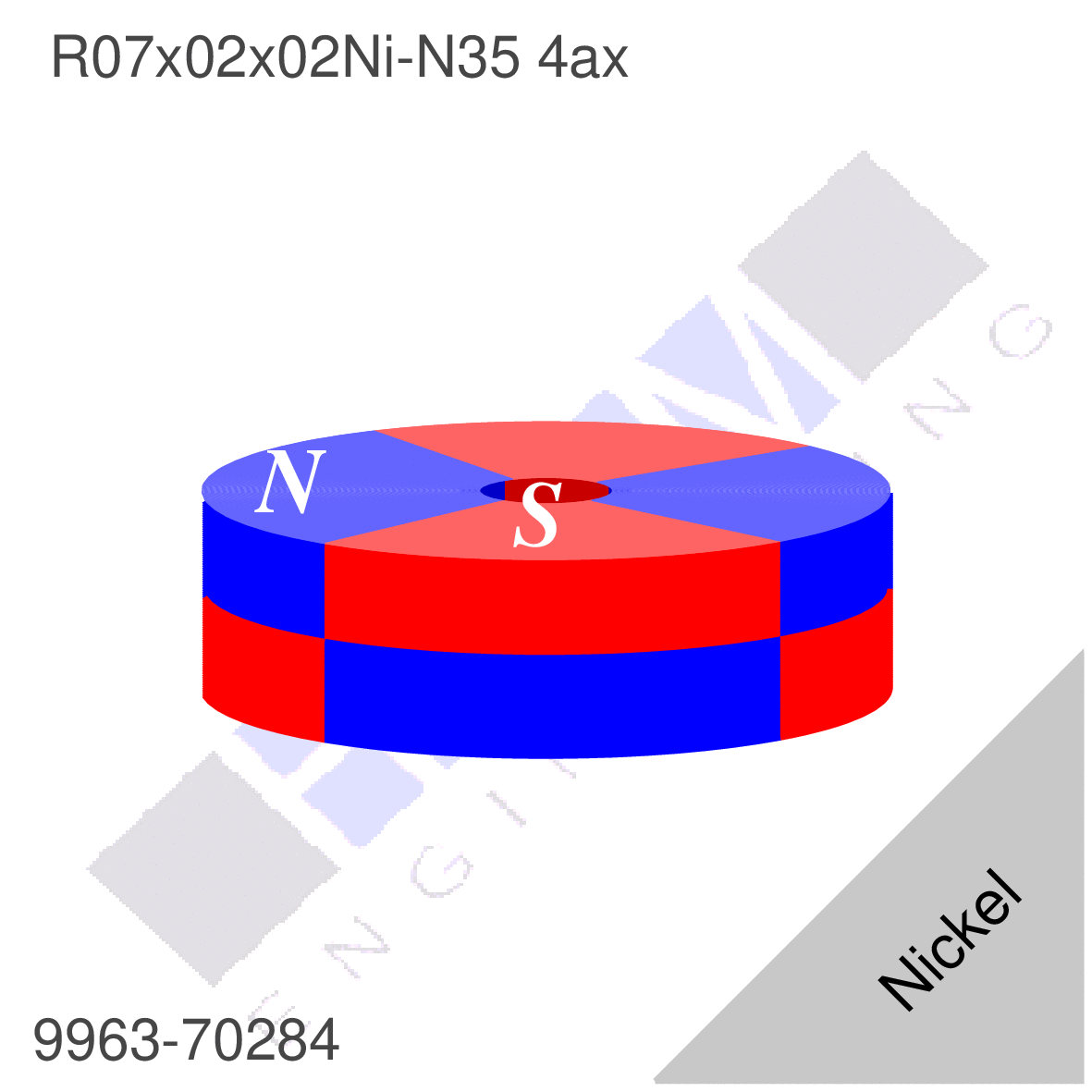

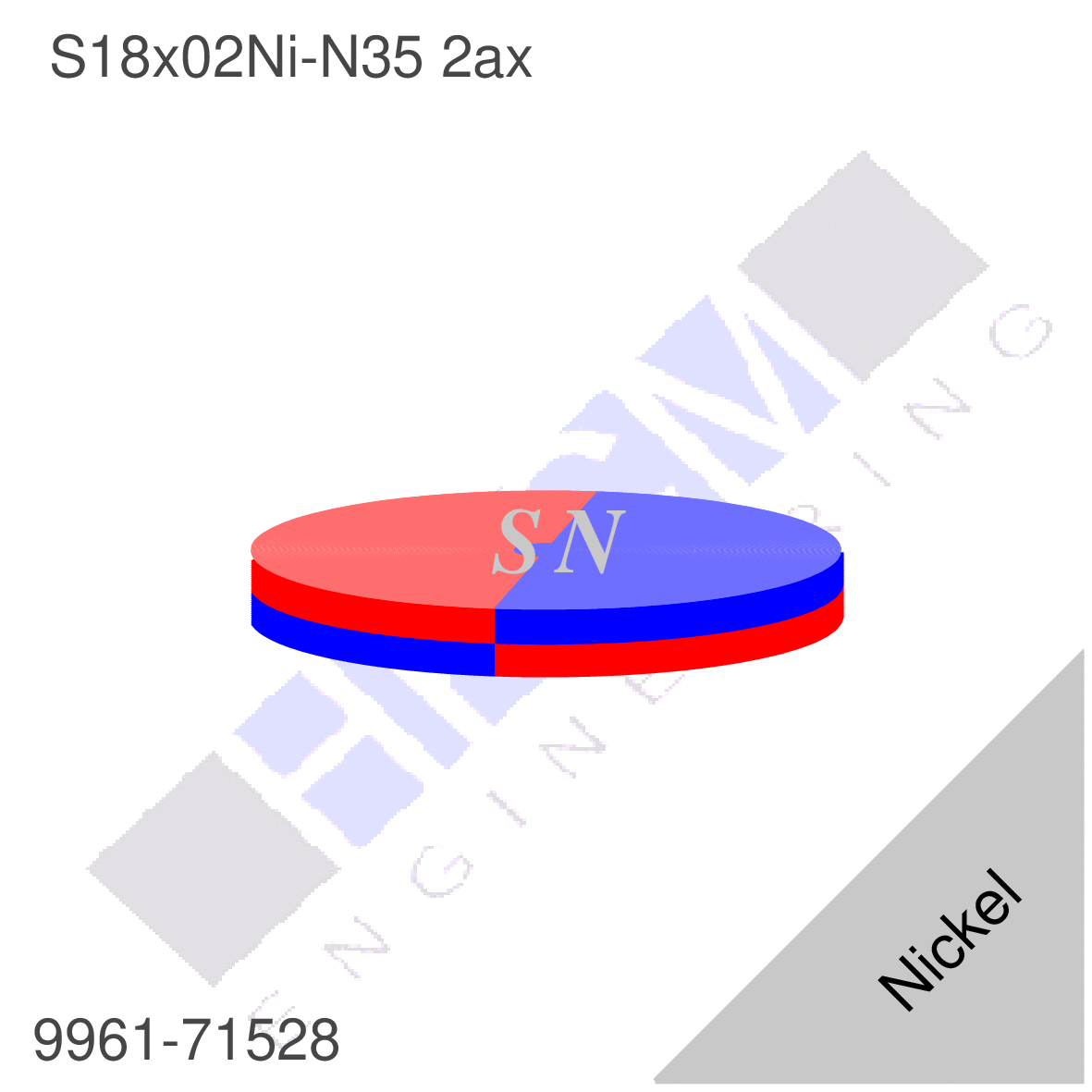

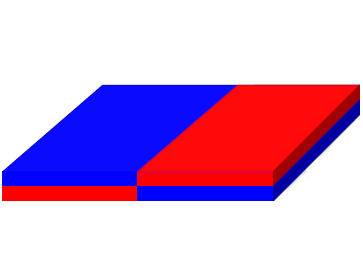

Multi pole cuboids, disc and rings for the sensor technology
e.g. for stepper motors, angle or position measuring, revolution counting etc...

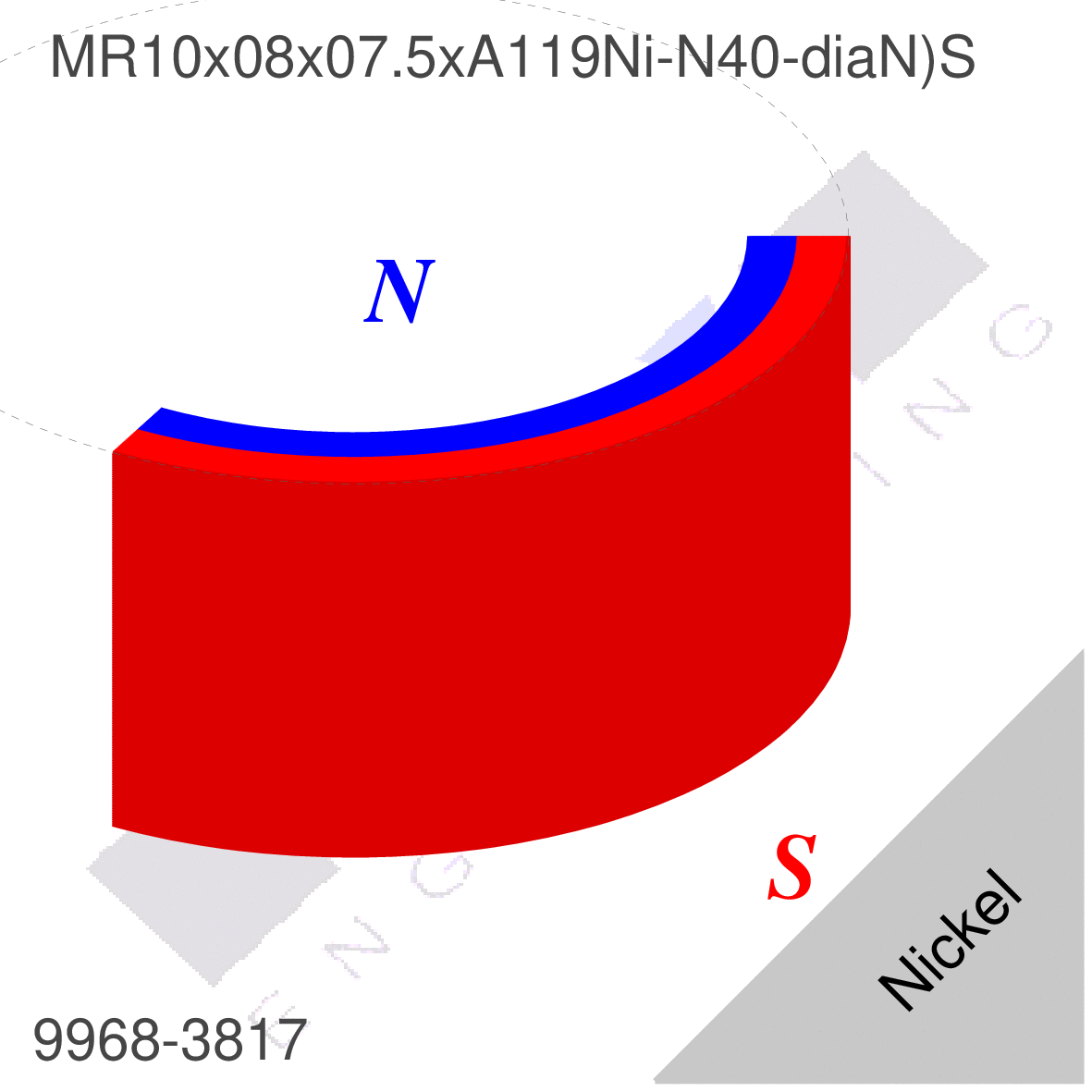

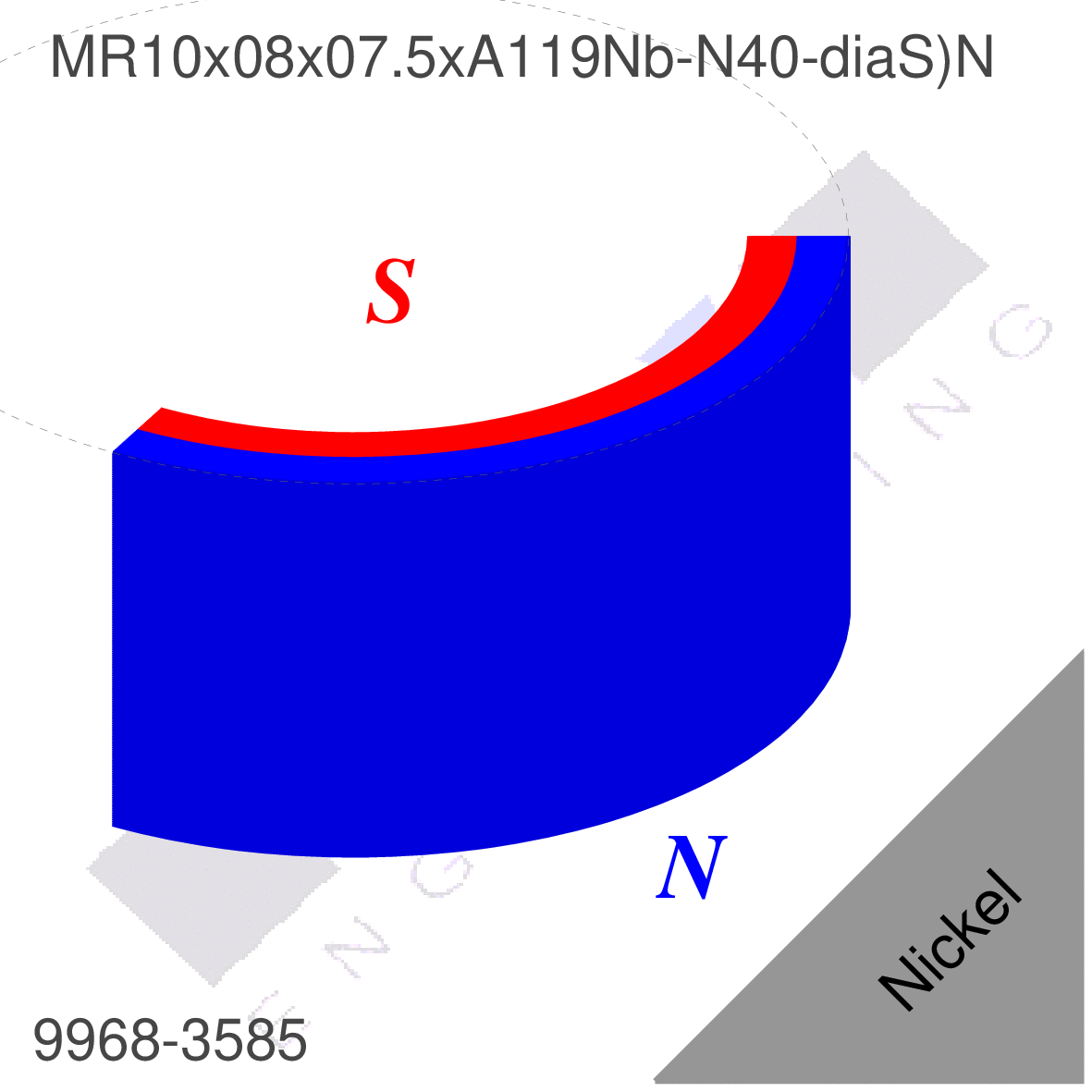

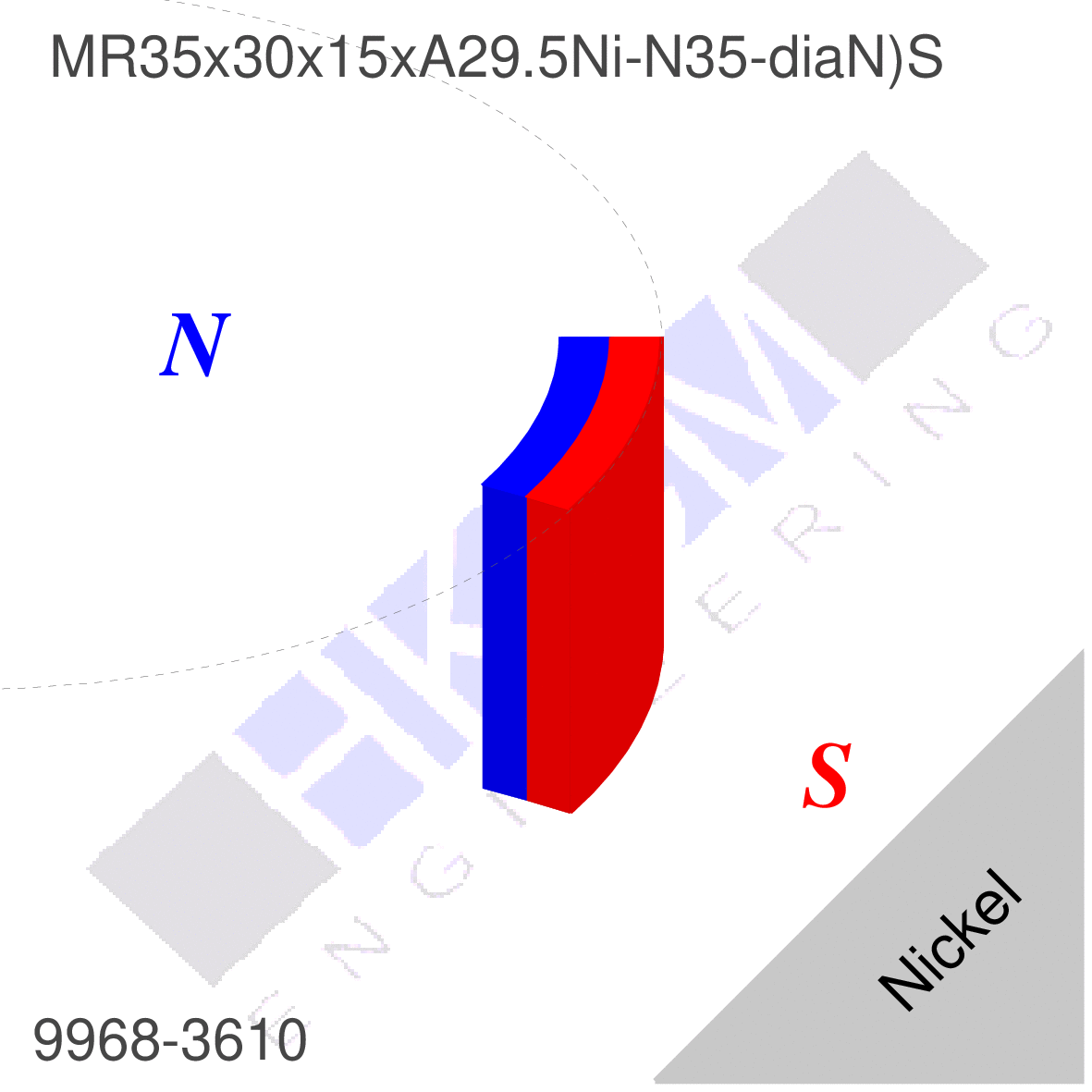

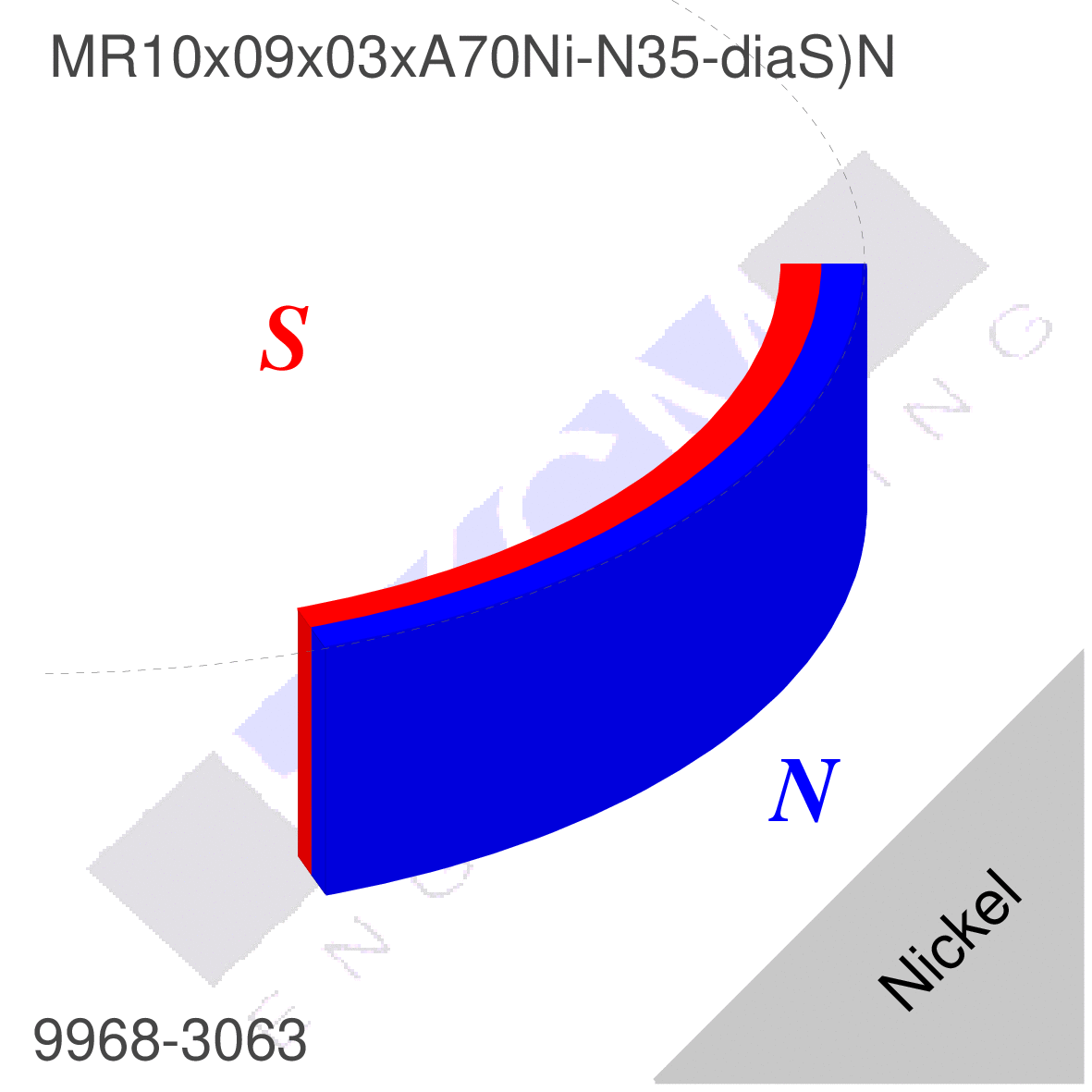

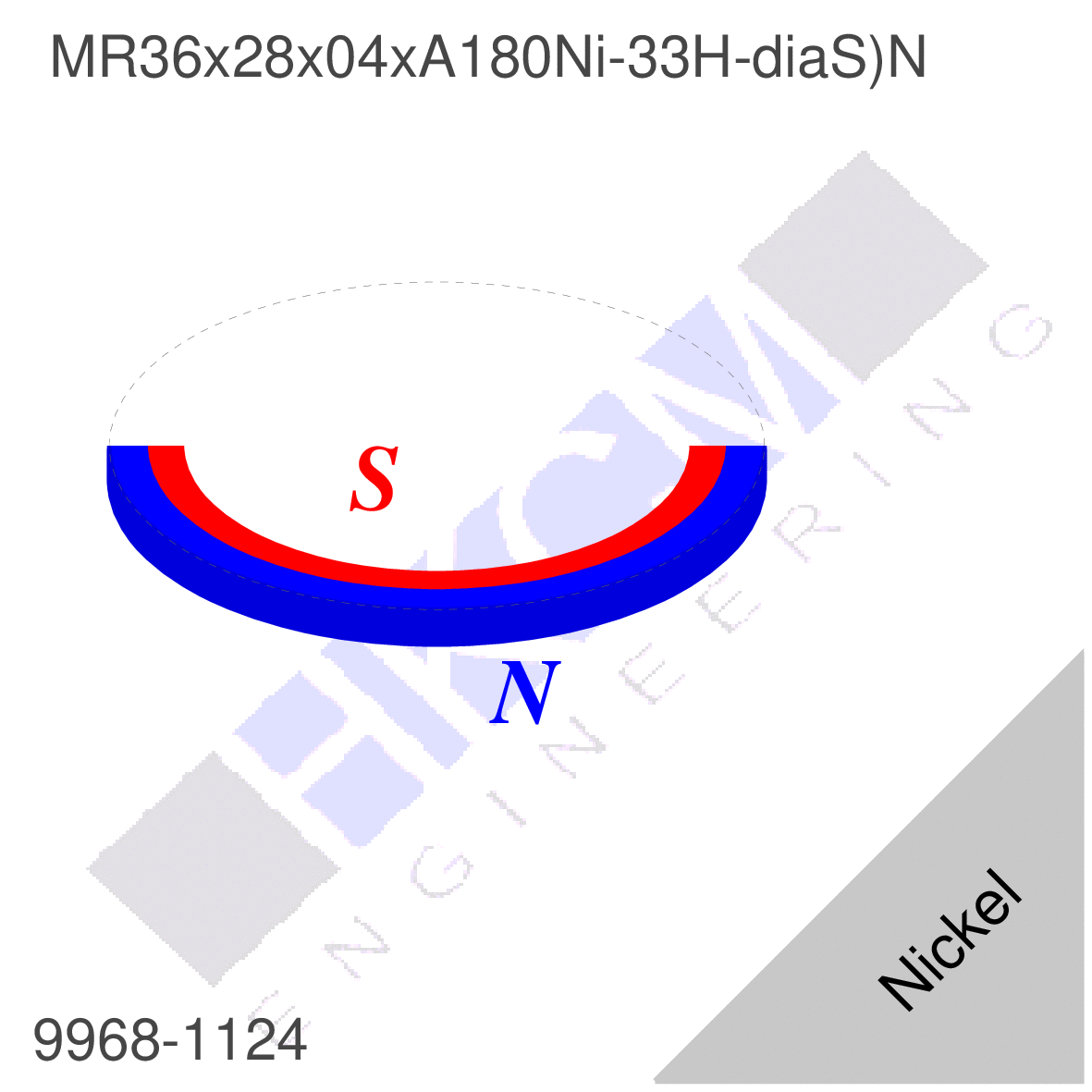

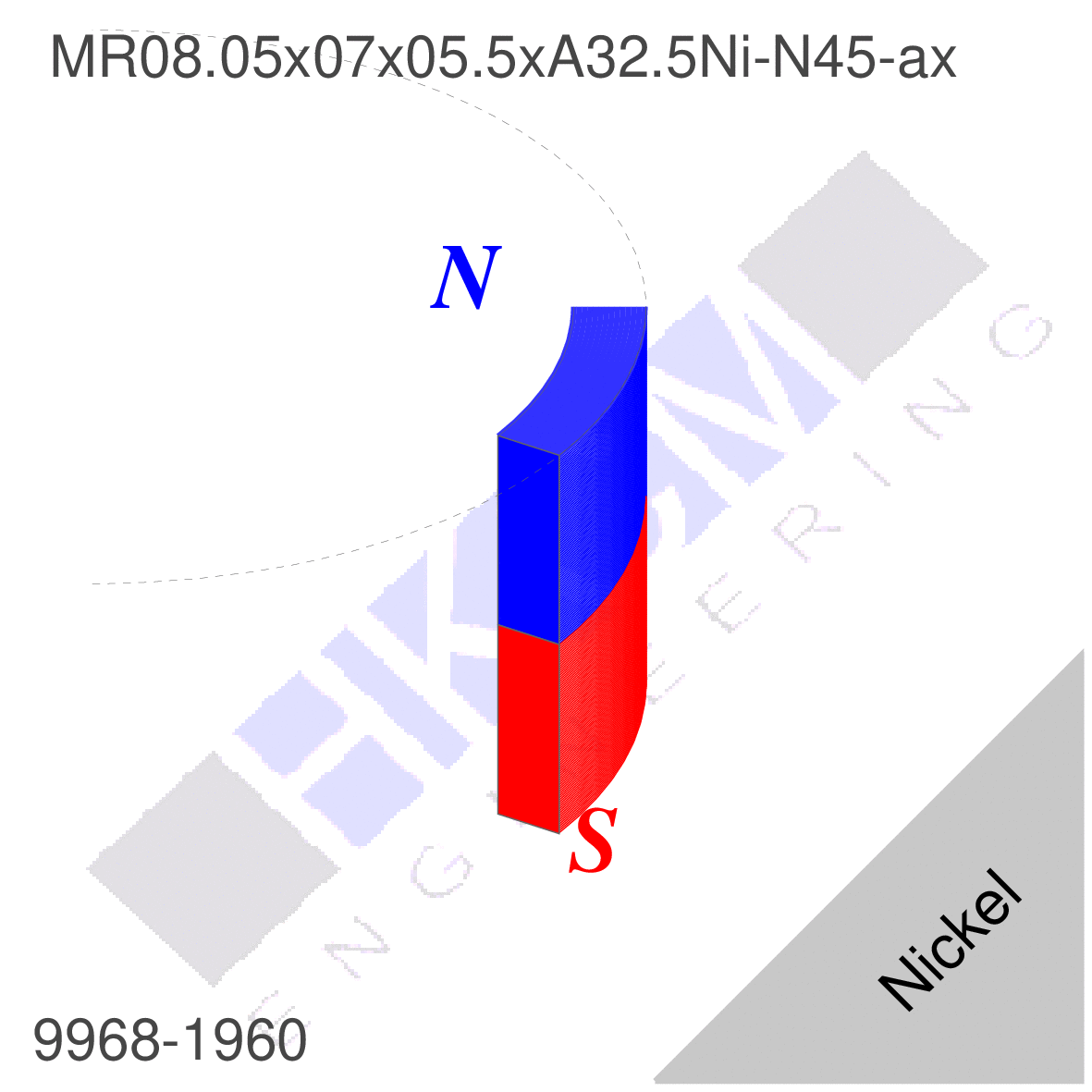

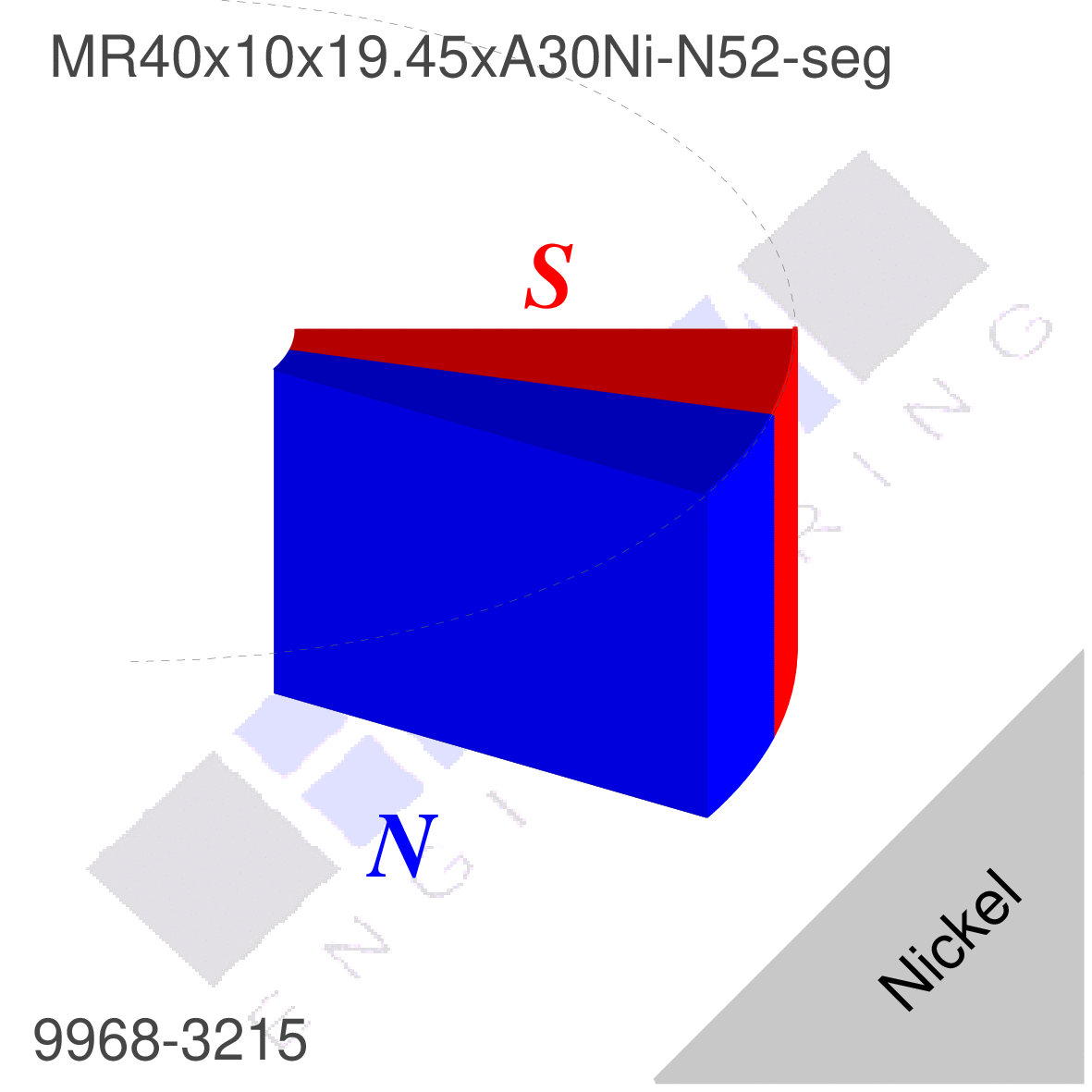

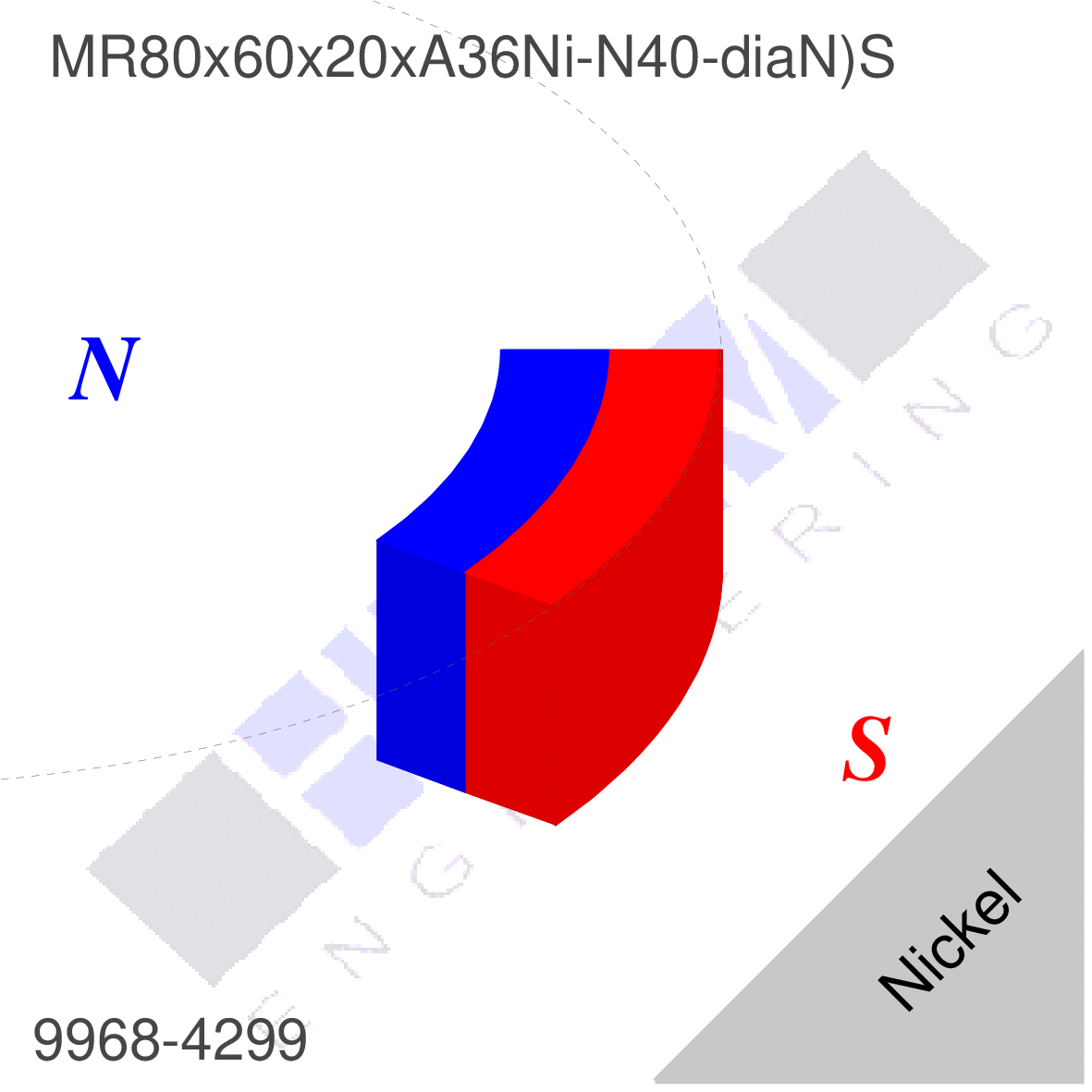

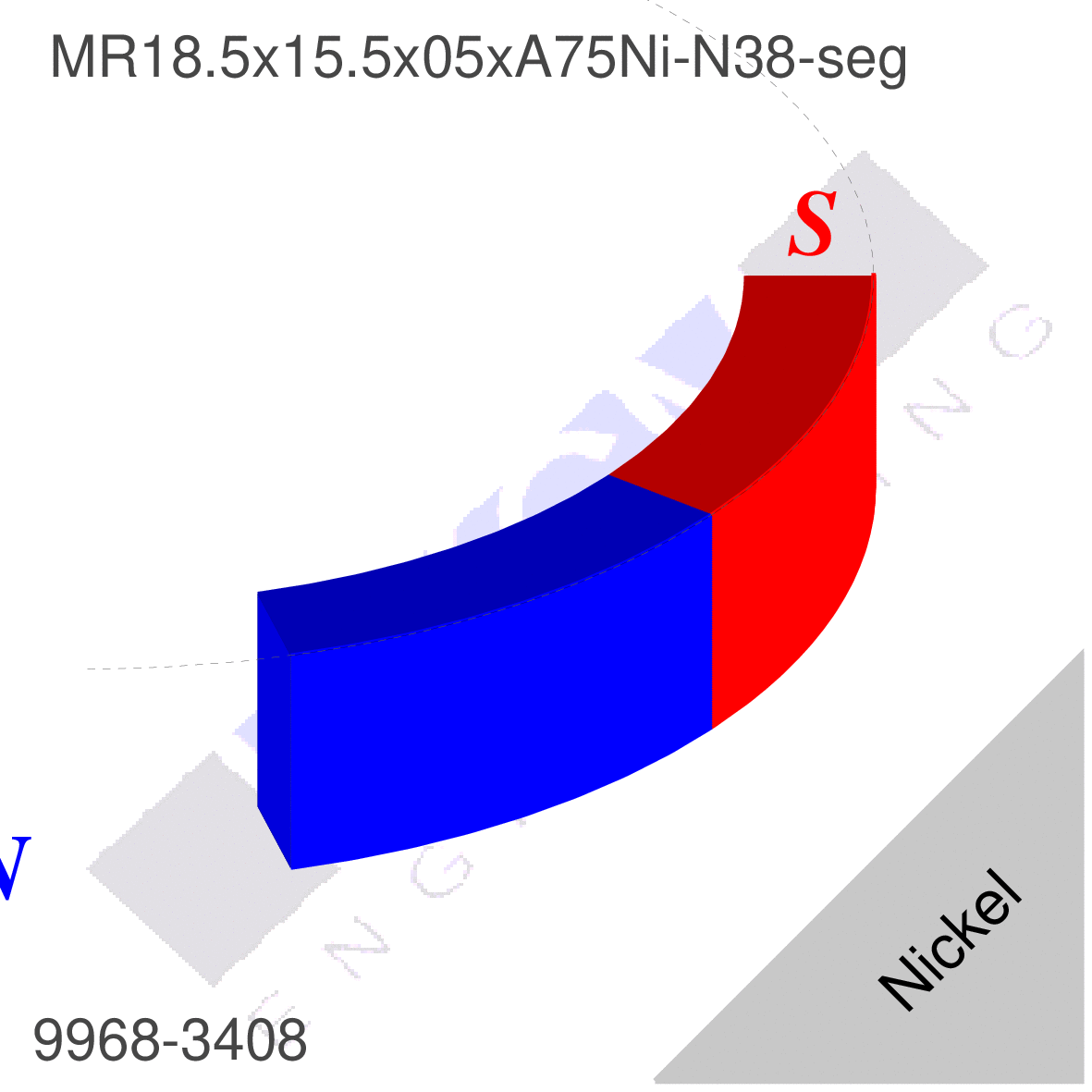

Segment magnets for motors and generators
wedges and shells with axially, diametrically or segmentally pole orientation
Online Design & Calculation
Configure 'Your' magnets on our Online Design pages just yourself. Define size, shape, pole direction, material and coating ... ... and instantly you get drawings in 2D and 3D, diagrams for the force and field strength at a distance for different materials ...
Magnets for humid ambients: Teflon & Parylene coating acc. MIL-I-46058C, FDA & BfR
water-repellent, barrier against organic & anorganic substances, acids & alkaline solution, gas & steam, structure-preserving, low friction coefficient
Machinable magnets (drilling, sawing, grinding)
made of plastic-bound neodymium - for adaptation to special geometries
Magnets for soldering with Gold or Tin coating, temperatures > 250°C
for electronic applications
Magnets for high temperatures
250°C
350°C
500°C
during installation (e.g.soldering) & during operation (e.g.in motors

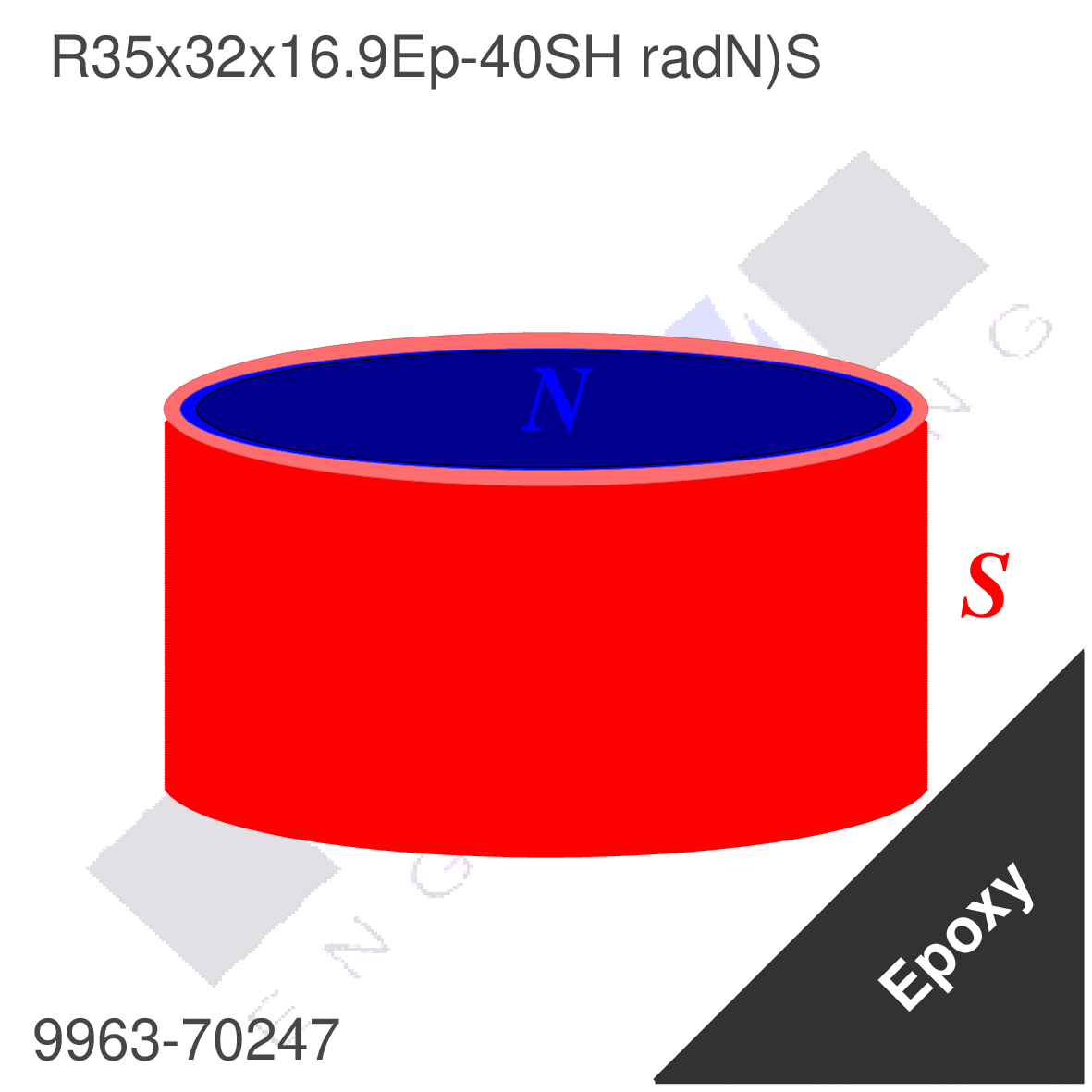

Magnets with Epoxy coating
plastic layer in dip-coating process, black, soft and elastic surface good protection against corrosion, water-repellent
Refined magnets (Gold and Silver)
for electrical engineering and electronics (conductive, anticorrosive)
